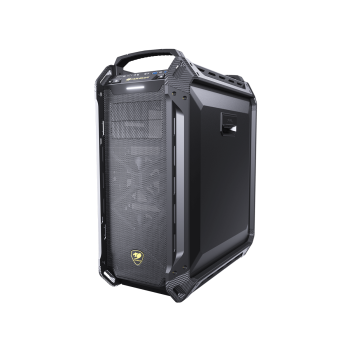

PANZER MAX-G
The Ultimate Full Tower Gaming Case
Panzer Max-G is a full tower gaming case with a full-sized tempered glass panel that has been designed with gamers, overclockers, modders and professional level computer lovers in mind. It brings you great freedom when designing your system, with lots of space for components and superb cooling capabilities. It also brings you a powerful design that shows the COUGAR style like no other.
Superior Expandability
Incredible Graphics + Loads of Storage + Motherboard Freedom
Panzer Max-G brings you unprecedented levels of freedom when designing your system. Its support for six different motherboard form factors and up to four double-slot 390mm graphics cards allows you to install all the computing power you need, while the possibility to host up to six storage devices will provide plenty of space for your files.
A Window to the Heart of Your PC
To help you fully enjoy your investment, Panzer Max-G supports a full-size tempered glass left panel that give you complete visibility of its interior. It allows you to see all the high-end components and further enhance the majesty of this art piece.
Superior Cooling
Powerful Airflow + Water Cooling Support + Intelligent Cable Management
Cooling is a critical factor for gamers, overclockers and PC enthusiasts in general, and Panzer Max-G offers all they could ask for. With support for up to eight fans and four water cooling radiators, you will enjoy more than enough cooling horsepower to keep even the most advanced components safe from overheating. To complement this, its intelligent cable management system will keep all the cables behind the motherboard tray, allowing air to flow unobstructedly and dissipate the internal components’ heat.
Water cooling radiator support
Air cooling support
Airflow Guide for Storage
Part of the front fans’ airflow is redirected towards the back of the motherboard tray.
Fan Speed Control Switch
Adjust the Fan’s Speed Easily
Comparison
 |
 |
 |
 |
||
| Models | PANZER MAX | PANZER MAX-G | PANZER EVO | PANZER EVO RGB | |
| Front and Top Covers | Mesh | Mesh | Tempered Glass | Tempered Glass | |
| Left and Right Covers | Metal with Acrylic Window and Easy Tool-less Removal |
Left: Tempered Glass Right: Metal Panel with Easy Tool-less Removal |
Tempered Glass | Tempered Glass | |
| I/O Panel | USB 3.1 Gen 2 Type C Port |
No | No | No | Yes |
| ARGB fan | No | No | No | Yes | |
| Included COUGAR Core Box with Remote Controller ( ARGB Fan Control Box, Supports up to 8 COUGAR ARGB Fans and 4 COUGAR LED Strips) |
No | No | No | Yes | |
| Pre-installed Cooling Fans |
Front | 120mm Standard (non-LED) Fan x 2 | N/A | 120mm Vortex LED Fan x 3 | 120mm Vortex ARGB Fan x 3 |
| Rear | 120mm Standard (non-LED) Fan x 1 | 120mm Standard (non-LED) Fan x 1 | 120mm Vortex LED Fan x 1 | 120mm Vortex ARGB Fan x 1 | |
| 5.25" Drive Bay | 2 | 2 | No | No | |
* All pictures shown are for illustration purpose only. Specifications might vary depending on the country or region of sale.
Specifications
| Model Name | PANZER MAX-G | |
|---|---|---|
| Case Form Factor | Full-Tower | |
| Dimension (WxHxD) | 266 x 612 x 556 (mm) 10.47 x 24.09 x 21.88 (in) |
|
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / E-ATX ( E-ATX up to 12"x11" ) |
|
| 5.25" Drive Bay | 2 | |
| 3.5" Drive Bay | 2 | |
| 2.5" Drive Bay | 4+2 (converted from 3.5" drive bays) | |
| Expansion Slots | 8 | |
| Cooling System | Front | 120mm x 3 / 140mm x 3 |
| Top | 120mm x 3 / 140mm x 2 | |
| Rear | 120mm x 1 (Standard (non-LED) Fan Preinstalled) | |
| Bottom | 120mm x1 / 140mm x 1 | |
| I/O Panel | USB3.0 x 2/USB2.0 x 2 Mic x 1/Audio x 1 Fan Controller |
|
| Water Cooling Support | Front | 360mm / 280mm / 240mm / 140mm / 120mm |
| Top | 360mm / 280mm / 240mm / 140mm / 120mm | |
| Rear | 120mm x 1 | |
| Bottom | 140mm x 1 / 120mm x 1 | |
| Max. Graphics Card Length | 390mm / 15.35 (in) | |
| Max. CPU Cooler Height | 170mm / 6.69 (in) | |
| PSU | Standard ATX PS2 | |
| Max. PSU Length | 220 (mm) / 8.7 (in) | |
| Cable Management | Yes | |
| Maximum Number of Fans | 8 Max. | |
Packing Data
| Product Number (P/N) | 106AMK0015-00 | |
|---|---|---|
| EAN CODE | 4715302442965 | |
| UPC CODE | 192554001401 | |
| JAN CODE | 4541995034169 | |
| Individual Size W/O Packaging Weight (N.Weight) | 12.76 (kg) | |
| Individual Packaging Weight (G.Weight) | 15.25 (kg) | |
| Individual Size W/O Packaging (WxHxD) | 612 x 266 x 556 (mm) | |
| Individual Packaging Size (WxHxD) | 668 X 380 x 668 (mm) | |
